Ammonia Strippers

New stripper design boasts high efficiency with less equipment


A new design for ammonia strippers, which removes 98% of the NH3 found in wastewater discharge from semiconductor operations, was developed by TSI. Because of the stripper's high efficiency, it is possible to comply with discharge limits of less than 10ppm. To reach these removal levels, previous designs required two trains of a stripper, absorber and blower operating in series. The new configuration uses two stripping towers in series with one absorber tower. This makes it possible to eliminate a blower and an absorber tower, which reduces costs and footprint.

Wastewater enters the plant and the pH is raised to greater than or equal to 10.5 with addition of sodium hydroxide, which converts ammonium ions to NH3. The water is pumped through the first two packed towers where the NH3 is stripped by a countercurrent flow of air. Air from the first stripper is scrubbed in a packed-bed absorber, which has used sulfuric acid recirculating the tower to absorb the NH3 as ammonium sulfate. The clean air is used in the second, then the first, stripping towers, making for a closed system. This has advantage of preventing evaporation losses since the heat of reaction and blower energy are recovered. This heat causes the system to operate at about 10F higher than ambient temperature, which allows for a smaller blower and less NaOH compared to open systems.

The first commercial application of the new configuration - designed to treat 38 gal/min. at SMIC's semiconductor fabrication plant in Shanghai, China - was commissioned in January, 2003. The system reduces the NH3 concentration from 1,500 mg/L to less than 150 mg/L. This system is effective at removing NH3 from streams with low suspended solids and low calcium concentrations, and can be configured from 10-150 gal/min.

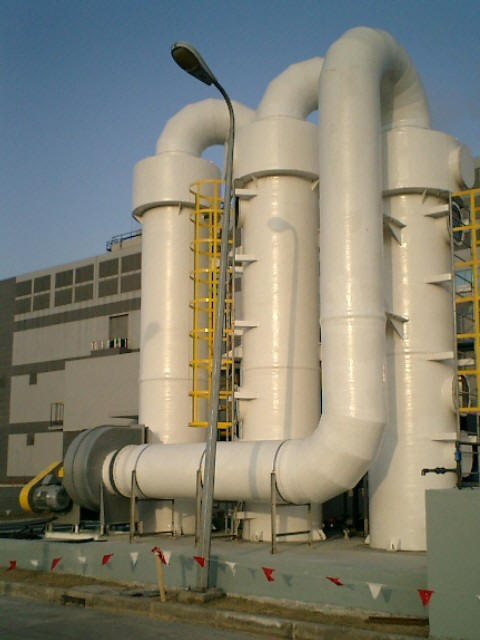

TSI Ammonia Stripper installed at SMIC's semiconductor fabrication plant in Shanghai, China
